A wall-hung bathroom vanity can create a lighter, more open-looking bathroom, but a successful installation depends on more than choosing an attractive cabinet. The finished height, sink type, plumbing location, drawer layout, wall construction, and accessibility requirements must all be coordinated before installation begins.
Unlike a freestanding cabinet, a wall-hung bathroom vanity does not have legs or a base that automatically establishes its position. The installer must determine exactly where the cabinet will sit on the wall. That flexibility is useful, but it also means that an incorrect measurement can affect comfort, plumbing, storage, and long-term stability.
This guide explains how homeowners, designers, contractors, and dealers can evaluate those decisions before ordering or installing a wall-mounted bathroom vanity.
There Is No Universal Mounting Height for Every Wall-Hung Vanity
People often search for one standard wall-hung vanity height. In practice, the correct measurement depends on the complete assembly rather than the cabinet alone.
The important finished dimension is usually the height of the usable sink or countertop surface above the finished floor. Cabinet height is only one part of that calculation. Countertop thickness, sink configuration, mounting hardware, and the intended users can all change the final result.
Many residential layouts begin with a finished counter height somewhere in the mid-30-inch range. However, this should be treated as an initial planning reference, not a universal rule. For example, one model-specific wall-hung vanity installation guide recommends positioning the top of that particular vanity at 34-1/2 inches. A different cabinet, sink, or mounting system may require different dimensions.
The product’s installation drawing should always control the final mounting location.
Start Every Measurement at the Finished Floor
Mounting measurements should be taken from the finished floor, not from the subfloor. Tile, stone, waterproofing assemblies, and other floor materials add height. If the installer marks the wall before accounting for those layers, the completed vanity may end up lower than intended.
Before drilling or installing wall reinforcement, confirm:
- The final floor material and its installed thickness
- The cabinet’s actual height
- The countertop thickness
- Whether the sink is integrated, undermounted, drop-in, or vessel-style
- The height and location of the mounting rail or brackets
- The desired height of the final washing surface
Use one consistent reference line throughout the project. A dimension written as “34 inches high” is incomplete unless it states what is being measured: the cabinet top, countertop, sink rim, or mounting bracket.
Calculate the Finished Height Before Locating the Bracket
A reliable planning sequence works backward from the intended finished surface.
- Choose the desired height of the countertop or sink rim above the finished floor.
- Subtract the thickness of the countertop or integrated top.
- Subtract the cabinet height.
- Use the manufacturer’s drawing to locate the mounting rail, bracket, or fastening points.
- Verify that the result works with the drain, water supplies, drawers, and wall framing.
A vessel sink requires particular attention. Because the bowl sits above the countertop, using a conventional countertop height without adjustment can place the sink rim uncomfortably high. The faucet height and spout reach must also suit the selected bowl.
Mocking up the proposed height can prevent mistakes. Mark the countertop and sink rim on the wall with painter’s tape, then have the primary users stand at the location. This simple check is especially useful in a primary bathroom used every day.
Coordinate the Plumbing Before the Wall Is Closed
Plumbing coordination is one of the most important differences between a floor-standing cabinet and a wall mounted bathroom vanity. A floating design exposes the floor beneath the cabinet, so pipes routed through the floor may remain visible or prevent the intended appearance.
The drain and water supplies usually need to enter through a defined area at the back of the cabinet. That area may be limited by drawers, internal dividers, structural rails, and mounting hardware. A drain that appears centered on the wall can still interfere with a drawer box or trap once the vanity is installed.
Before rough-in work begins, the plumber should have the actual product drawing—not just a nominal cabinet width. The drawing should be checked against:
- The sink drain centerline
- The permitted plumbing zone inside the cabinet
- The depth and movement of every drawer
- The trap and shutoff-valve locations
- The faucet and supply-line configuration
- The mounting rail and wall reinforcement
Do not assume that existing plumbing will fit a new floating vanity. Relocating a drain after tile and cabinetry are installed is far more disruptive than coordinating it during framing or rough-in.
Protect Storage and Future Service Access
A wall-hung vanity may look simple from the outside while containing a tightly organized interior. Full-extension drawers, internal organizers, and concealed plumbing can compete for the same space.
Cutting a large opening in the back of the cabinet may solve an immediate plumbing conflict, but it can weaken components, reduce usable storage, or affect the product warranty. Likewise, forcing a trap around a drawer can make the plumbing difficult to inspect and service.
The better approach is to coordinate the plumbing zone before installation and follow the cabinet manufacturer’s approved openings. Shutoff valves and drain connections should remain accessible without requiring destructive removal of the vanity.

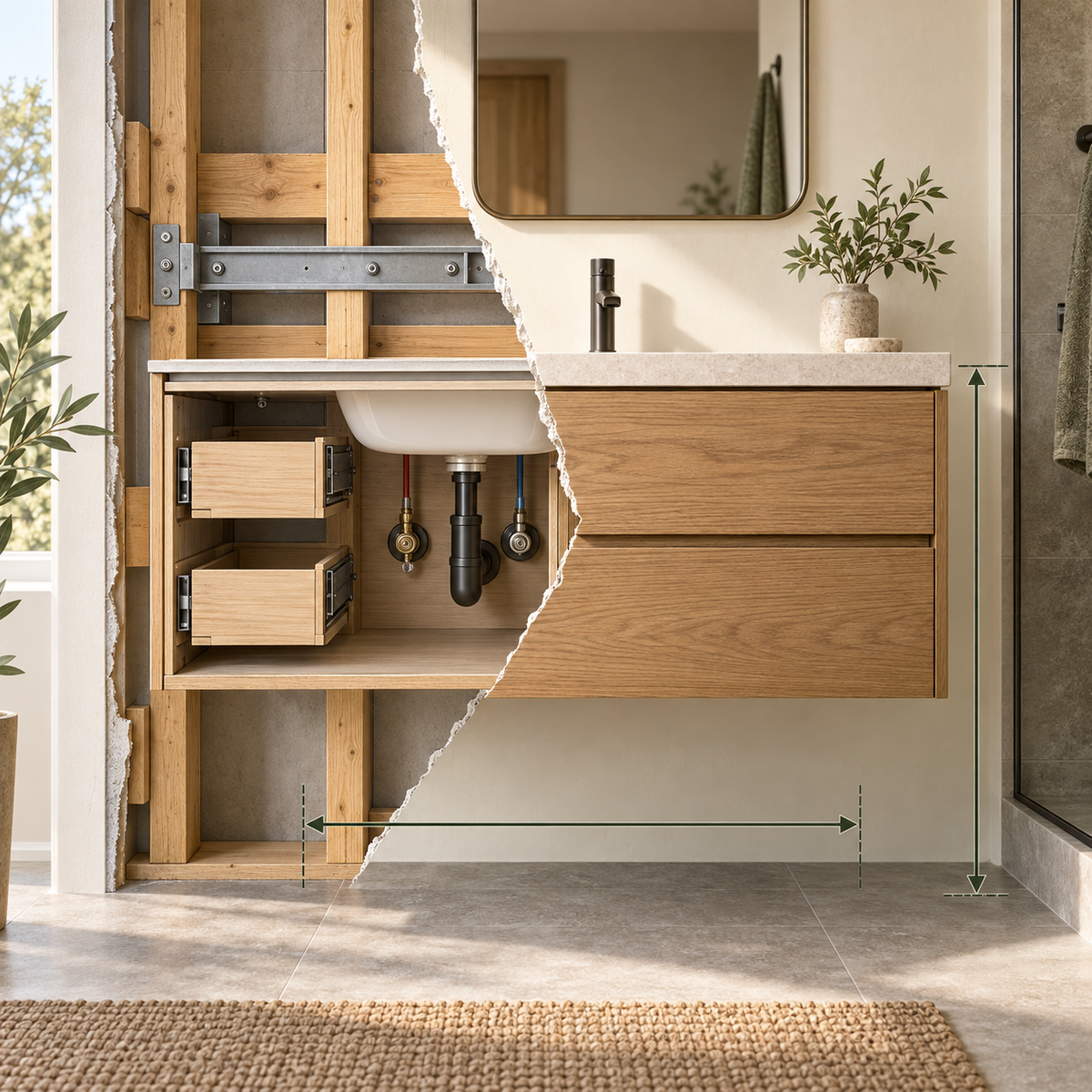

The Wall Must Match the Product’s Mounting System
A wall-hung bathroom vanity transfers the weight of the cabinet, countertop, sink, stored items, and normal use into the wall. Drywall alone should not be treated as the structural support.
The required backing, fasteners, and stud locations vary by product and wall construction. Manufacturer instructions may call for fastening directly into studs, installing solid blocking behind the finished wall, or using a model-specific hanging rail. Masonry and metal-stud walls may require a different engineered fastening approach.
This is another reason to select the vanity before closing the wall. If the framing team knows the exact mounting height and fastening layout, reinforcement can be placed where the installation instructions require it.
Because mounting requirements are product-specific, installers should follow the supplied instructions and applicable local building and plumbing codes. When the wall construction or fastening method is uncertain, consult a qualified contractor rather than substituting generic anchors.
Choose the Floor Gap for Function, Not Appearance Alone
The visible space below a floating bathroom vanity affects both the room’s proportions and its daily maintenance. More exposed flooring can make a compact bathroom feel lighter, but the gap must still work with the cabinet height, plumbing, baseboard, floor transitions, and cleaning tools.
A very narrow gap may be difficult to clean. A large gap can raise the cabinet and countertop beyond a comfortable height unless the cabinet itself is shallower vertically. For that reason, floor clearance should be calculated as part of the complete elevation rather than selected as an isolated visual detail.
If baseboard runs behind or beside the vanity, decide in advance whether it will continue, stop at the cabinet, or be recessed. Resolve that detail before installation so the vanity can sit level and close to the wall where required.
A Floating Vanity Is Not Automatically ADA-Compliant
The open floor below a wall-hung vanity may suggest accessibility, but visual openness is not the same as compliant knee and toe clearance.
Where the 2010 ADA Standards apply, a lavatory generally requires a forward approach, qualifying knee and toe space, and a clear floor area. The higher of the front rim or counter surface is limited to 34 inches above the finished floor. The required clear floor space is generally at least 30 by 48 inches, and exposed water-supply and drain pipes must be protected against contact.
The U.S. Access Board’s guide to lavatories and sinks provides diagrams and explanations for these requirements.
A standard floating cabinet can still block the required knee space even when the floor beneath it is visible. ADA requirements also do not automatically apply to every private single-family bathroom, while state or local accessibility rules may differ. Projects involving accessible dwelling units, hospitality, multifamily housing, public accommodations, or commercial facilities should be reviewed by a qualified design professional and the authority having jurisdiction.
Use a Pre-Installation Coordination Checklist
Before approving a wall-hung vanity installation, confirm the following items in writing:
- Final cabinet model, width, height, and depth
- Finished-floor elevation
- Countertop and sink configuration
- Final counter or sink-rim height
- Mounting rail and fastener locations
- Wall stud, blocking, or masonry conditions
- Drain and water-supply locations
- Drawer and internal storage clearances
- Faucet height, reach, and hole configuration
- Mirror, medicine cabinet, outlet, and lighting relationships
- Required accessibility clearances, when applicable
- Manufacturer instructions and local code review
For homeowners, this checklist creates clearer conversations with the contractor. For designers, builders, and dealers, it reduces late field changes and helps protect the intended appearance of the finished bathroom.
Planning Ahead for the Cove Series
As Eclife Premier prepares to introduce the Cove Series, this planning framework can help homeowners and trade professionals evaluate a wall-hung vanity before installation begins. Product-specific Cove dimensions, plumbing zones, mounting details, and installation requirements should be confirmed from the official technical documents when they become available.
In the meantime, readers can compare Eclife Premier bathroom vanity series to explore different sizes, configurations, and design directions for a complete bathroom plan.
Final Takeaway
The best height for a wall-hung bathroom vanity is not determined by one generic number. It comes from coordinating the users, finished floor, cabinet, countertop, sink, plumbing, storage, mounting system, and any applicable accessibility requirements.
Choose the product early, work from the finished floor, use the manufacturer’s technical drawing, and review the plumbing and wall support before finishes are installed. Those decisions make the difference between a vanity that merely looks good in a rendering and one that works well in the completed bathroom.
